The Niagara framework from Tridium is a software platform that integrates diverse systems and devices regardless of manufacturer, or communication protocol, into a unified platform. With Standard high security IT Network, it can be easily managed and controlled in real time, over the Internet, using a standard web browser.

By integrating today’s diverse facility systems such as security, lighting, HVAC, energy, video, fire & life safety system, Niagara creating a better buildings, hotel, plants & etc. Smarter system must bring contribution of use less energy, are more efficient, lower operating cost, secure and environmental friendly.

Examples of daily application that can be integrated with Niagara in a typical BMS

■ BMS / HVAC (Plant Level)
■ Security (CCTV/ACCESS)
■ Lighting / Blinds
■ AV
■ Fire
■ Elevators
■ Home Automation
■ Energy Management
■ Electrical Management
■ Building Performance and Monitoring
■ Facilities Management
■ Data Centers (DCIM)
■ Renewables

There are different levels of integration available depending on the various systems, services and applications, the Niagara Framework® is architected around the IoT and takes the form of the following:



This is a representation of a typical IoT solution with the many layers required to get data from many disparate systems and IoT devices to either a Desktop User Interface (UI) I or Mobile device through the IoT Layer Stack.

Where systems and applications require serial data and/or TCP/IP connectivity, these can be accommodated concurrently via the NIAGARA platform:

  • BACnet / RS485 / TCP/IP
  • Dali / RS485 / TCP/IP
  • LON / TCP/IP
  • KNX / RS485 / TCP/IP
  • M-Bus / RS232 / TCP/IP
  • Modbus / RS485 / TCP/IP
  • oBIX / TCP/IP
  • SNMP /TCP/IP
  • EthernetIP and Profinet
  • OPC UA
  • MQTT
  • Open API
300

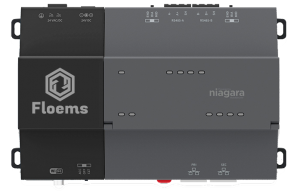

JACE 8000

The JACE 8000 is a compact, embedded IoT (Internet of Things) controller and server platform for connecting multiple and diverse deviced and sub-systems. With internet connectivity and web-serving capability, the Jace 8000 controller provides integrated control, supervision, data logging, alarming, scheduling and network management.

It streams data and rich graphical displays to a standard web browser via an Ethernet or wireless LAN, or remotely over the internet.

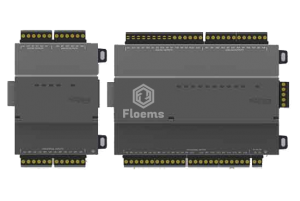

IO-R MODULES

IO solution that makes the next-generation Jace 8000 more powerful, and your migration path straightforward.

IO R allows the JACE 8000 to
interface directly with simple non
intelligent inputs and ouput remotely
located up to 4,000 feet from JACE.
The connection is established via
and industry standard RS 485 bus.

Niagra Analytics is the only data analytics engine built on
Tridium Tridium’s Industry Leading Niagara Framework.
Niagara Analytics 2.0 can be utilized locally using real-time
data in a n embedded controller for energy optimization, or
for data analysis using historical information you’ve already
saved, making your staff more effective and your building
more effcient.


 Take control of your data
 Realtime analytics and IOT
 Existing analytics data model
 Powerful visualization
 Automated control strategies
 Intuitive programming
 On-premise analytic control
 Predefined algorithm library

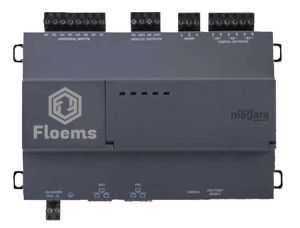

NIAGARA EDGE 10


Niagara Edge 10 is an IP-base field equipment controller powered by the Niagara Framewoks.Niagara Edge 10 controllers drive applications such as zone temperature control, and the operation of fan coil units, single-stage air handling units,water source heat pumps and more.

Niagara edge 10 controllers run the full Niagara Stack, with 10 points of on board IO and IO-R-34 expansion capability. Niagara Edge 10 licensing supports three device and 50 total points to harness the full power of Niagara at the edge.

Niagara Enterprise Security

Alarm and activity monitoring

Comprehensive system-wide event viewer provides instant feedback on alarms, card access traffic, system administration changes and status updates on system arm/disarm. Search using a standard list of predefined reports, or generate custom reports using powerful ad hoc reporting capabilities. Alarm console provides simultaneous viewing of both live and recorded video associated with the alarm event.

Extensive access zone management

In addition to common access control functions, Niagara Enterprise Security includes comprehensive rule-based access control through access zone management. The system provides one-click global lockdown, as well as supervisor rule enforcement, thereby restricting access to areas unless appropriate supervisory staff is present.

Powerful integration

Niagara Enterprise Security’s comprehensive, integrated toolset enables non-programmers to extend the product’s capabilities. Using the toolset, integrators can craft building automation, energy management, lighting control and a wide range of custom solutions tailored to the end user’s needs—all while working in a powerful drag-and-drop, graphical programming environment.

FLOEMS CONNECT

Connecting your Niaga 4 system to the Cloud. We are providing cloud hosting for the customers who has scattered facility location and wanted to see all location within 1 dashboard. Floems Connects will provides hosting for your Niagara 4 system without any worries maintaining any server and related infrastructure
